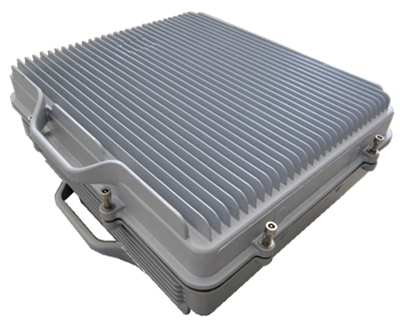

Item

Specification

Downlink

Uplink

Frequency Range (MHz)

GSM900 Band

951.9 ~ 959.9

906.9 ~ 914.9

WCDMA2100 Band

2155 ~ 2170

1965 ~ 1980

Bandwidth(MHz)

GSM900 Band

8

8

WCDMA2100 Band

13.84

13.84

Max. Total Output Power ( Center Frequency ) (dBm)

43dBm Model

43±2

33±2

Gain (dB) (Center Frequency) at 25℃

43dBm Model

100 ± 3 @ GSM900

95 ± 3 @ WCDMA2100

95 ± 3 @ GSM900

90 ± 3 @ WCDMA2100

ATT Adjustable Range (dB)/(Step) 1dB

0~30 @ 1 dB step

ATT Adjustable Error (dB)

≤ |±1.5|

≤ |±1.5|

ALC (dB)

0~25

Noise Figure (dB) (Max. Gain)

≤ 7.0

≤ 7.0

Ripple In Band (P-P) (dB)At +25℃

GSM900 Band

≤ 5.0

WCDMA2100 Band

≤ 5.0

Input / Output VSWR(Power up, Min Gain, Pin=-30dBm)

(Power up, Min. Gain, Pin=-30dBm)

≤ 1.5

≤ 1.5

Time Delay (us)

≤ 5.0

≤ 5.0

WCDMA

EVM

≤12.5%

PCDE

≤-35dB

3rd Inter-modulation (dBc)(Max Gain)

GSM

≤ -42 (dual-tone interval 600kHz)

WCDMA

≤ -36 (dual-tone interval 600kHz)

Out of Band Rejection (dBc) At +25℃

@ GSM900

± 600KHz offset

≤-15

± 1MHz offset

≤-30

± 2MHz offset

≤-45

Out of Band Gain (dB)

At +25℃

@ WCDMA2100

2.7MHz < f_offset < 3.5MHz

≤60dB

3.5MHz < f_offset < 7.5MHz

≤45dB

7.5MHz < f_offset < 12.5MHz

≤45dB

12.5MHz < f_offset

≤35dB

Spurious Emission (dBm)

@ Out Of Band 2.5MHz Offset

≤ -36dBm/1kHz@9kHz~150kHz

≤ -36dBm/10kHz@150kHz~30MHz

≤ -36dBm/100kHz@30MHz~1GHz

≤ -30dBm/1MHz@1GHz~12.75GHz

≤ -36dBm/10kHz@150kHz~30MHz

≤ -36dBm/100kHz@30MHz~1GHz

≤ -30dBm/1MHz@1GHz~12.75GHz

RF Connector

N(f)

Input / output Impedance (Ω)

50

Power Supply

DC-48V

Power Consumption (Watts)

≤330

Temperature Range (℃)

-25 ~ +55

Humidity Range (%)

5~95

Weight (Kg)

≤40

Dimension (mm)

499*399*225.2；

Monitor & Alarm

Local with DB9K (RS232)；NMS；

Optional Remote with GSM Modem；

remote with wireless modem
