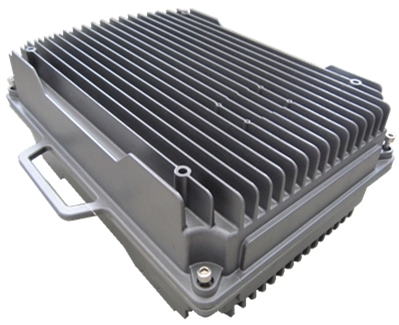

Item

Specification

Uplink

Downlink

Frequency Range (MHz)

GSM900

898.5 ~ 915

943.5 ~ 960

LTE FDD1800

1710 ~ 1730

1805 ~ 1825

Bandwidth(MHz)

GSM900

16.5

16.5

LTE FDD1800

20

20

Max. Total Output Power (dBm)

43±2

33±2

Gain (dB)

95±3

 90±3

ATT Adjustable Range (dB)/(Step) 1dB

0~30 @ 1 dB step

ATT Adjustable Error (dB)

1 ~ 10

≤ |±1.0|

≤ |±1.0|

11 ~ 20

≤ |±1.0|

≤ |±1.0|

21 ~ 30

≤ |±1.5|

≤ |±1.5|

ALC (dB)

0~20

Noise Figure (dB) (Max. Gain)

≤ 7.0

≤7.0

Ripple In Band (P-P) (dB)

At +25℃

GSM900

≤5.0

LTE FDD1800

≤5.0

Input / Output VSWR(Power up, Min Gain, Pin=-30dBm)

(Power up, Min. Gain, Pin=-30dBm)

≤ 1.8

≤ 1.8

Time Delay (us)

≤ 5.0

≤ 5.0

Out of Band Rejection (dBc)

At +25℃

±1MHz offset

≤-15

±2MHz offset

≤-30

±5MHz offset

≤-45

3rd Inter-modulation (dBc)(Max Gain)

≤ -45 (dNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNual-tone interval 3.84MHz)

Spurious Emission (dBm)

@ Out Of Band 2.5MHz Offset

≤ -36dBm/1kHz@9kHz~150kHz

≤ -36dBm/10kHz@150kHz~30MHz

≤ -36dBm/100kHz@30MHz~1GHz

≤ -30dBm/1MHz@1GHz~12.75GHz

≤ -36dBm/10kHz@150kHz~30MHz

≤ -36dBm/100kHz@30MHz~1GHz

≤ -30dBm/1MHz@1GHz~12.75GHz

RF Connector

N(f)

Input / output Impedance (Ω)

50

Power Supply

AC176-264V

Temperature Range (℃)

-25 ~ +55

Humidity Range (%)

5~95

Weight (Kg)

<35

Dimension (mm)

489*409*186.5

Device cooling ways

Cooling with fan

Monitor & Alarm

Local with DB9 (RS232)；

Remote with GSM Modem；

remote with wireless modem
