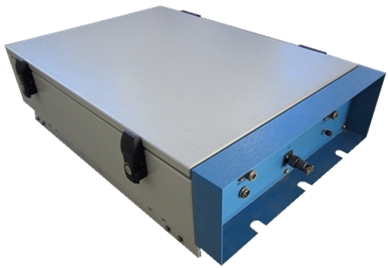

Items

Specifications

Forward

Reverse

Frequency Range (MHz)

869 ~ 894

824 ~ 849

Operating Bandwidth (MHz)

25

25

Max. Output Power (dBm) (IS-95)

30/33/37/40/43/45/46±2

30±2

Max. Gain (dB)

30/33dBm Model

85±3

85±3

37dBm Model

90±3

85±3

40/43/45/46dBm Model

95±3

90±3

ALC Range (dB)

0 ~ 20

0 ~ 20

ALC Accuracy (dB)

≤ |±2.0|

≤ |±2.0|

Noise Figure (dB) (Max. Gain)

≤ 5.0

Total Processing Delay (us)

≤ 5.0

Waveform Quality

> 0.95

> 0.96

Ripple In Band (dB) at 25℃

≤ 4.0

≤ 4.0

ATT Adjustable Range (dB)

0 ~ 30

0 ~ 30

ATT Adjustable Step (dB)

1

1

ATT Adjustable Error (dB)

1 ~ 10dB

±1.0

±1.0

10 ~ 20dB

±1.0

±1.0

20 ~ 30dB

±1.5

±1.5

3rd Inter-Modulation Attenuation (dBc) (Max Gain)

≤ -45/30KHz (In-Band)

ACPR (dBc)

△f ≥ 750KHz/30KHz

≤ -45

≤ -42

(IS-95)

△f ≥ 1.98MHz/30KHz

≤ -60

≤ -54

In Band Emission (dBm) (RBW: 30KHz)

≤ -15

Out of Band Emission @ offset ±2.5MHz

9KHz-150KHz/1kHz

≤ -36

150KHz-30MHz/10kHz

≤ -36

30MHz-1GHz/100kHz

≤ -36

1GHz-12.75GHz/1MHz

≤ -30

930MHz-960MHz/100kHz(Peak

≤ -47

1.8GHz-1.92GHz/100kHz(Peak)

≤ -47

3.4GHz-3.53GHz/100kHz(Peak)

≤ -47

Out of Band Rejection

±2.5MHz offset

≤ -40

at 25℃(dBc)

±10MHz offset

≤ -60

VSWR (Power on, Min Gain, Pin=-30dBm)

≤ 1.5

Impedance (Ω)

50

Radio Connector

N(f)

Power Supply

AC220V or DC -48V

Dimension (mm)

30/33/37/40dBm Model

510*350*167

43dBm Model

510*350*190

45/46dBm Model

640*425*190

Weight (Kg)

30/33/37/40dBm Model

≤ 19

43dBm Model

≤ 23

45/46dBm Model

≤ 32

Enclosure Protection Degree

IP65 (outdoor)

Operating Temperature (℃)

-20 ~ +55

Humidity (%)

95

Control Function

Local with DB-9K (RS-232)

Remote with wireless modem
