2G+2G+3G Indoor Coverage Solutions
2G+2G+3G Indoor Coverage Solutions ----------------
Pico Digital Repeater
Digital tri band repeater is designed by adopting SDR (software Define Radio) technology based on FPGA (Field Programmable Gate array) & DSP (digital Signal Processing) platform. FPGA & DSP platform enables the flexibility in frequency bands selection across the technologies (GSM900, GSM1800 & WCDMA2100) through software very easily at field without changing any hardware. Digital Tri-band repeater has designed with built in Modem to connect with a centralized Network Monitoring Software. Network Monitoring Software can control and monitor the repeaters operational features like gain, output power, frequency band allocations and real time alarms from the field.
Significant Features
Ø Support Tri-band systems (GSM/DCS/UMTS/FD-LTE /TD-LTE) is available.
Ø Frequency bands allocations can be changed by software locally or remotely.
Ø Flexible Bandwidth, Tunable and Movable by Software, Customized Band
Ø Maximum 6 sub bands per technology
Ø Frequency bands can ON/OFF by soft switch
Ø Better out of band rejection compared to Analog SAW technology
Ø Built in Modem for remote control
Ø Complies the ETSI & 3GPP2 Standards
Ø High Working gain
Ø Auto shut down and AGC based on threshold settings
Ø automatic detection of isolation, and can automatically eliminate
self – excitation, The elimination scope is greater than 30dB.
Ø Coverage of A 600m2 Apartment or A 1500m2 Basement

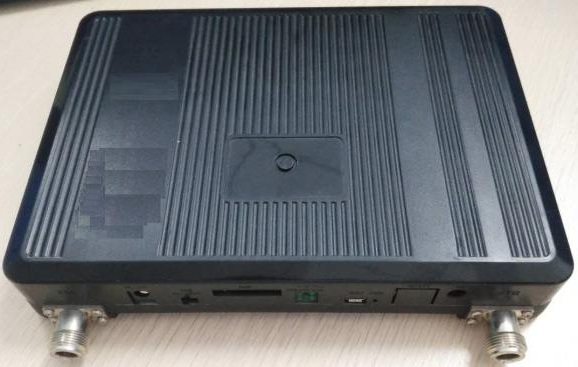

GSM+DCS+WCDMA Digital Tri- Band 20dBm Wireless Repeater
MODEL | DMN-GLU-VF6-70-20SEMA | ||||||
Items | Specifications | ||||||
Downlink | Uplink | ||||||
Frequency Range (MHz) | GSM Band | 935– 960 | 890– 915 | ||||
DCS Band | 1805-1880 | 1710 1785 | |||||
WCDMA Band | 2110– 2170 | 1920 – 1980 | |||||
Operating Bandwidth (MHz) | GSM Band | 0.2-10 | |||||
DCS Band | 0.2-10 | ||||||
WCDMA Band | 5/10/15(EBW3.84/8.84/13.84) | ||||||
Sub-band number | GSM Band | 3 | |||||
DCS Band | 3 | ||||||
WCDMA Band | 2 | ||||||
Max. Output Power (dBm) | 17±2 | 17±2 | |||||
Max. Gain (dB) | 70±3 | 70±3 | |||||
ATT Adjustable Range/ Step (dB) | 0 ~ 30/1 | ||||||
Ripple In Band (dB)at 25℃ | GSM Band | ≤±3.0@ Sub-band | |||||
DCS Band | ≤±4.0@ Sub-band | ||||||
WCDMA Band | ≤±2.0@3.84MHz | ||||||
ALC Range (dB) | 0 ~ 20 | ||||||
ALC Accuracy (dB) | ≤ |±2.0| | ||||||
AGC Range (dB) | 30 | ||||||
Inter-Modulation (dBc) (GSM/DCS/WCDMA Band) | ≤ -36 (2 tone of 600KHz spacing) | ||||||
Out of Band Emission @offset ±2.5MHz | 9KHz~1GHz | ≤ -36 @ 100KHz | |||||
1GHz~12.75GHz | ≤ -30 @ 1MHz | ||||||
Noise Figure (dB) (Max. Gain) | ≤8.0 | ||||||
Total Processing Delay (us) | ≤5.0 | ||||||
Input VSWR (Power up, Min Gain, Pin=-30dBm) | ≤1.8 | ||||||
Out of Band Gain at 25℃(dB)GSM/DCS Band | ±600KHz offset | ≤50 | |||||
±1MHz offset | ≤ 35 | ||||||
±5MHz offset | ≤ 25 | ||||||
Out of Band Gain at 25℃(dB)LTE&UMTS Band | 2.7MHz≦f_offset＜3.5MHz | ≤ 60 | |||||
3.5MHz≦ f_offset＜7.5MHz | ≤ 45 | ||||||
7.5MHz≦f_offset＜12.5MHz | ≤ 45 | ||||||
12.5MHz≦ f_offset | ≤ 35 | ||||||
Frequency Error (ppm) | ≤0.05 | ||||||
EVM (Error vector margin)(%)RMS | ≤10.0 | ||||||
Impedance (Ω) | 50 | ||||||
Radio Connector | N(f) | ||||||
Power Supply | AC220V, 45-55Hz | ||||||
Housing class | IP30 | ||||||
Weight (Kg) | ≤5 | ||||||
Dimension (mm) | 310*241*69(Note1) | ||||||
Operating Temperature (℃) | 0 ~ +55 | ||||||
Power Consumption(W) | ≤80 | ||||||
Humidity (%) | ≤85 | ||||||
Control Function | Local control | Micro-USB | |||||
Remote control | Optional | ||||||
Status monitoring (Alarm & signal level) | Power supply, input/output power (UL/DL), isolation, temperature, Power Indicator ,Alarm Indicator | ||||||
Note1: According to the production and the actual needs, the shape structure may change, in order to final production.
