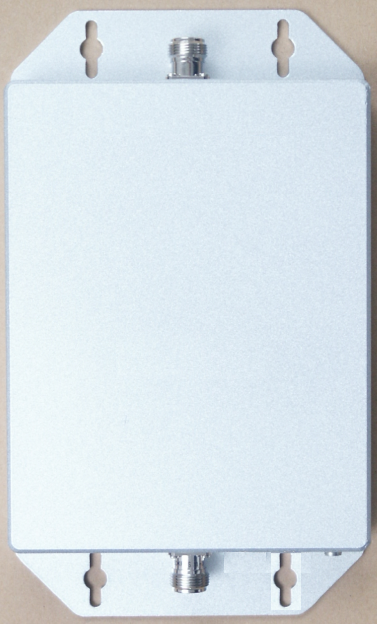

Items

Specifications

Uplink

Downlink

Frequency Range (MHz)

Frequency1,OR

1710~1755

1805~1850

Frequency2,OR

1740~1785

1835~1880

Operating Bandwidth (MHz)

Fixed bandwidth, 0.2~25M optional

Sub-band number

Fixed bandwidth, 1~5 optional

Max. Output Power (dBm)

Level 1

10~23±2,optional

10~23±2,optional

Level 2

23±2

27±2

Level 3

23±2

30±2

Level 4

30±2

33±2

Max. Gain (dB)

Level 1

65±3

65±3

Level 2

65±3

70±3

Level 3

70±3

75±3

Level 4

80±3

80±3

ATT Adjustable Range (dB)

0 ~ 30

0 ~ 30

ATT Adjustable Step (dB)

1

1

ATT Adjustable Error (dB)

≤|±1.5|

≤|±1.5|

Ripple In Band (dB)at 25℃

≤5.0

≤5.0

ALC Range (dB)

0 ~ 20

0 ~ 20

ALC Accuracy (dB)

≤|±2.0|

≤|±2.0|

Out of Band Emission @offset ±2.5MHz

9KHz~1GHz

≤-30/100KHz

≤-30/100KHz

1GHz~12.75GHz

≤-36/1MHz

≤-36/1MHz

3rd Inter-modulation attenuation (dBc) (Max Gain)

≤-36/30KHz

≤-36/30KHz

Out of Band Rejection

at 25℃(dBc) ,optional

±1MHz offset

≤30

≤30

±5MHz offset

≤45

≤45

Noise Figure (dB) (Max. Gain)

≤6.0

≤6.0

Total Processing Delay (us)

≤5.0

≤5.0

VSWR(Power up, Min Gain, Pin=-30dBm)

≤1.8

≤1.8

Items

Specifications

Impedance (Ω)

50

Radio Connector

N(f)

Power Supply

AC100~240V, 50Hz

Weight (Kg)

≤3

Power Consumption (W)

Level 1/2

≤25

Level 3/4

≤60

Dimension (mm)

Level 1/2

180*139*28

Level 3/4

226*174.5*28

Level 1/2+Remote

220*155*30

Level 3+Remote

225*173.5*30

Enclosure Protection Degree

IP30(indoor)

Operating Temperature (℃)

-0 ~ +55

Humidity (%)

95

Control Function

RJ45(RS232), Handle
