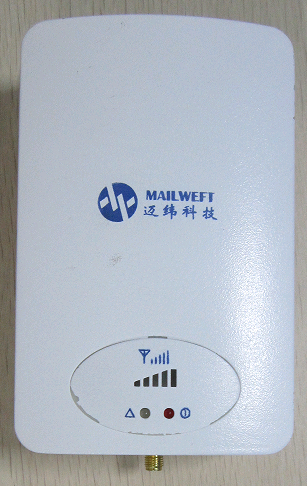

WCDMA Band Selective Pico Repeater

WCDMA Band Selective Pico Repeater

Features:

■ Designed with PLL control technology, low noise figure, great out-of-band rejection ability.

■ Intelligent ALC technology.

■ High linearity PA, maximum 85dB gain.

■ Low power consumption, compact size, easy for maintenance and installation.

■ Supporting local monitoring via PC and handle,RS232.

■ Aluminum Cabinet (IP30).

Product Description:

MN-W2100-XX-XX-XX is a cost-effective solution for wireless enhancement. Repeater receives donor signal from air via donor antenna, after signal amplification, signal will transmit to target service areas. All parameters can be adjusted or monitored through OMT and Handle.

Electrical Specifications:

Items				Specifications
				Uplink	Downlink
Frequency Range (MHz)				1920~1980	2110~2170
Operating Bandwidth (MHz)				Fixed bandwidth, 5~25M optional
Sub-band number				Fixed bandwidth, 1~5 optional
Max. Output Power (dBm)		Level 1		10~23±2,optional	10~23±2,optional
		Level 2		23±2	27±2
		Level 3		23±2	30±2
		Level 4		30±2	33±2
Max. Gain (dB)		Level 1		65±3	65±3
		Level 2		65±3	70±3
		Level 3		70±3	75±3
		Level 4		80±3	80±3
ATT Adjustable Range (dB)				0 ~ 30	0 ~ 30
ATT Adjustable Step (dB)				1	1
ATT Adjustable Error (dB)				≤\|±1.5\|	≤\|±1.5\|
Ripple In Band (dB)at 25℃				2.0@3.84MHz	2.0@3.84MHz
ALC Range (dB)				0 ~ 20	0 ~ 20
ALC Accuracy (dB)				≤\|±2.0\|	≤\|±2.0\|
Out of Band Emission @offset ±2.5MHz	9KHz~1GHz			≤-30/100KHz	≤-30/100KHz
	1GHz~12.75GHz			≤-36/1MHz	≤-36/1MHz
Spectrum Emission Mask(Max Gain)			Level 1	3GPP TS 25.106&143 standards compliant
3rd Inter-modulation (dBc) (Max Gain)			Level 2/3/4	≤-36/30KHz	≤-36/30KHz
Out of Band Gain at 25℃(dBc)	2.7≤f_offset<3.5MHz			≤60	≤60
	3.5≤f_offset<12.5MHz			≤45	≤45
	f_offset≤12.5MHz			≤35	≤35
Noise Figure (dB) (Max. Gain)				≤6.0	≤6.0
Modulation Accuracy	EVM(%)RMS			≤12.5	≤12.5
	PCDE(dB)			≤35	≤35
ACRR (dB)	offset±5MHz			≤20	≤20
	offset±10MHz			≤20	≤20
Total Processing Delay (us)				≤5.0	≤5.0
VSWR(Power up, Min Gain, Pin=-30dBm)				≤1.8	≤1.8

Mechanical Specifications:

Items		Specifications
Impedance (Ω)		50
Radio Connector		N(f)
Power Supply		AC100~240V, 50Hz
Weight (Kg)		≤3
Power Consumption (W)	Level 1/2	≤25
	Level 3/4	≤60
Dimension (mm)	Level 1/2	18013928
	Level 3/4	226174.528
	Level 1/2+Remote	22015530
	Level 3+Remote	225173.530
Enclosure Protection Degree		IP30(indoor)
Operating Temperature (℃)		-0 ~ +55
Humidity (%)		95
Control Function		RJ45(RS232), Handle
