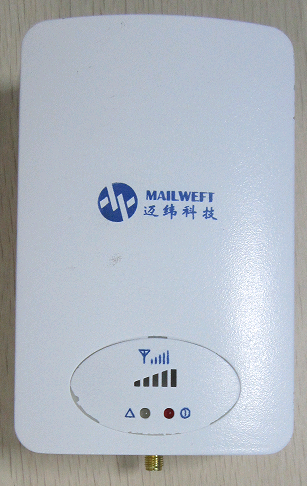

Smartphone analog Pico Repeater
Wide band intelligent Pico Repeater
Features:
■ Designed with low noise figure, great out-of-band rejection ability.
■ Intelligent ALC technology and attenuation regulation, Gain function
supports automatic detection, Automatic test input signal power,
Automatic tracking for uplink gain Settings.
■ High linearity PA, maximum 70dB gain.
■ Low power consumption, compact size, easy for maintenance and installation.
■ Automatic detection of transmitting antenna and receiving antenna isolation ratio, automatic control gain, self-excited protection function, to solve the instability of base station interference equipment.
■ All parameters can be adjusted automatically, automatic monitoring and processing
■ Aluminum Cabinet (IP30).
Electrical Specifications:
MODEL | MN-T800/15-60-25N36A | ||
Items | Specifications | ||
Uplink | Downlink | ||
Frequency Range (MHz) | 851~866 | 806~821 | |
Operating Bandwidth (MHz) | wide band | ||
Max. Output Power P1dB (dBm) | 17±2 | 17±2 | |
Max. Gain (dB) | 60±3 | 60±3 | |
Auto ATT Adjustable Range (dB) | 0 ~ 20 | 0 ~ 20 | |
ALC Range (dB) | 0 ~ 20 | 0 ~ 20 | |
ALC Accuracy (dB) | ≤|±2.0| | ≤|±2.0| | |
Ripple In Band (dB)at 25℃ | ≤6.0 | ≤6.0 | |
Out of Band Emission @offset ±2.5MHz | 9KHz~1GHz | ≤-30/100KHz | ≤-30/100KHz |
1GHz~12.75GHz | ≤-36/1MHz | ≤-36/1MHz | |
Noise Figure (dB) (Max. Gain) | ≤6.0 | ≤6.0 | |
Total Processing Delay (us) | ≤1.5 | ≤1.5 | |
VSWR(Power up, Min Gain, Pin=-30dBm) | ≤2.0 | ≤2.0 | |
Mechanical Specifications:
Items | Specifications |
Impedance (Ω) | 50 |
BTS Radio Connector | SMA(f) |
MS Radio Connector | Built-in ANT(omni antenna,0±3dBi) |
Power Supply | AC110~240V, 50Hz |
Weight (Kg) | ≤1.0 |
Power Consumption (W) | ≤10 |
Dimension (mm) | 127*82*45.4 |
Enclosure Protection Degree | IP30(indoor) |
Operating Temperature (℃) | -0 ~ +50 |
Humidity (%) | 95 |
Control Function | 1\Intelligent, internal automatic control; 2\OMT APP Connect(Via WIFI(50m)) Optional( increase the cost) |
LED indicator specifications:
Power indicator（Power）
| Green light | Equipment power supply is normal |
light not bright | Equipment power failure or no electricity | |
Isolation indicator lamp（ISO）
| Green light | Isolation is good |
Green flashing | Isolation is not good | |
Red&green flashing | Isolation is Poor | |
Red flashing | Isolation is very poor | |
Red light | isolation is Super poor | |
light not bright | Isolation is too small, into the device protection status | |
Downlink output power indicator（PM）
| Green light | Pout is Poutmax±2dBm |
Green light | Pout=（Pmax-2～Pmax-5）±2 dBm | |
Green light | Pout=（Pmax-6～Pmax-9）±2 dBm | |
Green light | Pout=（Pmax-10～Pmax-13）±2 dBm | |
Green light | Pout≤(Pmax-14dBm)±2dBm | |
Green light | DL input is too large, access to equipment protection | |
Three lights flashing at the same time | This condition is automatically detected and adjusted after the device has been added to the device, and the 10s is completed. | |
protection function | When the module of the downlink input signal, beyond the control range of the module, turn off the link, in the next 15 seconds after the start of the three restart, if the input state is still not changed, then shut down, 24 hours after the resumption of testing. | |
Note1: the need to ensure that the "ISO" indicator for "green light". Note2: Gpmax is Nominal gain, Pmax is Nominal output power | ||
