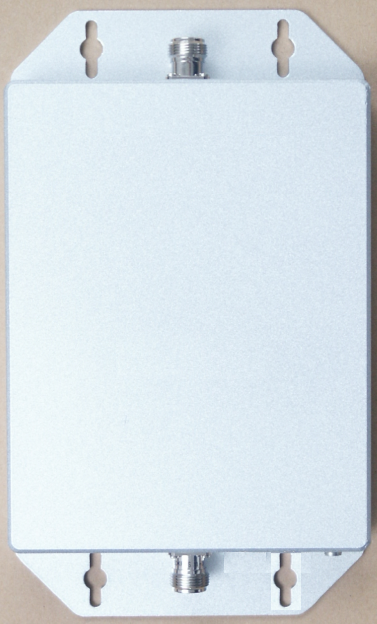

WCDMA Wide Band Pico Repeater

Features:

■ Designedwith low noise figure, great out-of-band rejection ability.

■ IntelligentALC technology.

■ Highlinearity PA, maximum 80dB gain.

■ Lowpower consumption, compact size, easy for maintenance and installation.

■ Supportinglocal monitoring via PC and handle,RS232.

■ AluminumCabinet (IP30).

Product Description:

MN-W2100-XX-XX-XX is a cost-effective solution for wirelessenhancement. Repeater receives donor signal from air via donor antenna, aftersignal amplification, signal will transmit to target service areas. Allparameters can be adjusted or monitored through OMT and Handle.

Electrical Specifications:

Items				Specifications
				Uplink	Downlink
Frequency Range (MHz)				1920~1980	2110~2170
Operating Bandwidth (MHz)				Wide Band
Sub-band number				1
Max. Output Power (dBm)		Level 1		10~23±2,optional	10~23±2,optional
		Level 2		23±2	27±2
		Level 3		23±2	30±2
		Level 4		30±2	33±2
Max. Gain (dB)		Level 1		65±3	65±3
		Level 2		65±3	70±3
		Level 3		70±3	75±3
		Level 4		80±3	80±3
ATT Adjustable Range (dB)				0 ~ 30	0 ~ 30
ATT Adjustable Step (dB)				1	1
ATT Adjustable Error (dB)				≤\|±1.5\|	≤\|±1.5\|
Ripple In Band (dB)at 25℃				2.0@3.84MHz	2.0@3.84MHz
ALC Range (dB)				0 ~ 20	0 ~ 20
ALC Accuracy (dB)				≤\|±2.0\|	≤\|±2.0\|
Out of Band Emission @offset ±2.5MHz	9KHz~1GHz			≤-30/100KHz	≤-30/100KHz
	1GHz~12.75GHz			≤-36/1MHz	≤-36/1MHz
Spectrum Emission Mask(Max Gain)			Level 1	3GPP TS 25.106&143 standards compliant
3rd Inter-modulation (dBc) (Max Gain)			Level 2/3/4	≤-36/30KHz	≤-36/30KHz
Out of Band Gain at 25℃(dBc)	2.7≤f_offset<3.5MHz			/	/
	3.5≤f_offset<12.5MHz			/	/
	f_offset≤12.5MHz			/	/
Noise Figure (dB) (Max. Gain)				≤6.0	≤6.0
Modulation Accuracy	EVM(%)RMS			≤12.5	≤12.5
	PCDE(dB)			≤35	≤35
ACRR (dB)	offset±5MHz			≤20	≤20
	offset±10MHz			≤20	≤20
Total Processing Delay (us)				≤1.5	≤1.5
VSWR(Power up, Min Gain, Pin=-30dBm)				≤1.8	≤1.8

Mechanical Specifications:

Items		Specifications
Impedance (Ω)		50
Radio Connector		N(f)
Power Supply		AC100~240V, 50Hz
Weight (Kg)		≤3
Power Consumption (W)	Level 1/2	≤25
	Level 3/4	≤60
Dimension (mm)	Level 1/2	18013928
	Level 3/4	226174.528
	Level 1/2+Remote	22015530
	Level 3+Remote	225173.530
Enclosure Protection Degree		IP30(indoor)
Operating Temperature (℃)		-0 ~ +55
Humidity (%)		95
Control Function		RJ45(RS232), Handle
