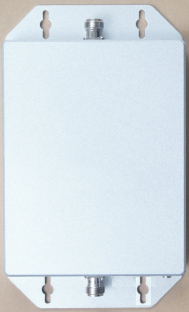

GSM Wide Band Pico Repeater
GSM Wide Band Pico Repeater
MN-G900-XX-XX-XX
Features:
■ Designedwith low noise figure, great out-of-band rejection ability.
■ IntelligentALC technology.
■ Highlinearity PA, maximum 85dB gain.
■ Lowpower consumption, compact size, easy for maintenance and installation.
■ Supportinglocal monitoring via PC and handle,RS232.
■ AluminumCabinet (IP30).
Product Description:
MN-G900-XX-XX-XX is a cost-effective solution for wireless enhancement.Repeater receives donor signal from air via donor antenna, after signalamplification, signal will transmit to target service areas. All parameters canbe adjusted or monitored through OMT and Handle.
Electrical Specifications:
Items | Specifications | |||
Uplink | Downlink | |||
Frequency Range (MHz) | 890~915 | 935~960 | ||
Operating Bandwidth (MHz) | Wide Band | |||
Sub-band number | 1 | |||
Max. Output Power (dBm) | Level 1 | 10~23±2,optional | 10~23±2,optional | |
Level 2 | 23±2 | 27±2 | ||
Level 3 | 23±2 | 30±2 | ||
Level 4 | 30±2 | 33±2 | ||
Max. Gain (dB) | Level 1 | 65±3 | ||
Level 2 | 65±3 | 70±3 | ||
Level 3 | 70±3 | 75±3 | ||
Level 4 | 80±3 | 80±3 | ||
ATT Adjustable Range (dB) | 0 ~ 30 | 0 ~ 30 | ||
ATT Adjustable Step (dB) | 1 | 1 | ||
ATT Adjustable Error (dB) | ≤|±1.5| | ≤|±1.5| | ||
Ripple In Band (dB)at 25℃ | ≤8.0 | ≤8.0 | ||
ALC Range (dB) | 0 ~ 20 | 0 ~ 20 | ||
ALC Accuracy (dB) | ≤|±2.0| | ≤|±2.0| | ||
Out of Band Emission @offset ±2.5MHz | 9KHz~1GHz | ≤-30/100KHz | ≤-30/100KHz | |
1GHz~12.75GHz | ≤-36/1MHz | ≤-36/1MHz | ||
3rd Inter-modulation attenuation (dBc) (Max Gain) | ≤-36/30KHz | ≤-36/30KHz | ||
Out of Band Rejection at 25℃(dBc) ,optional | ±1MHz offset | / | / | |
±5MHz offset | / | / | ||
Noise Figure (dB) (Max. Gain) | ≤6.0 | ≤6.0 | ||
Total Processing Delay (us) | ≤1.5 | ≤1.5 | ||
VSWR(Power up, Min Gain, Pin=-30dBm) | ≤1.8 | ≤1.8 | ||
Mechanical Specifications:
Items | Specifications | |
Impedance (Ω) | 50 | |
Radio Connector | N(f) | |
Power Supply | AC100~240V, 50Hz | |
Weight (Kg) | ≤3 | |
Power Consumption (W) | Level 1/2 | ≤25 |
Level 3/4 | ≤60 | |
Dimension (mm) | Level 1/2 | 180*139*28 |
Level 3/4 | 226*174.5*28 | |
220*155*30 | ||
Level 3+Remote | 225*173.5*30 | |
Enclosure Protection Degree | IP30(indoor) | |
Operating Temperature (℃) | -0 ~ +55 | |
Humidity (%) | 95 | |
Control Function | RJ45(RS232), Handle | |
