Analog/Digital Optical Fiber Repeater

Location:Home->Products->Products Detail

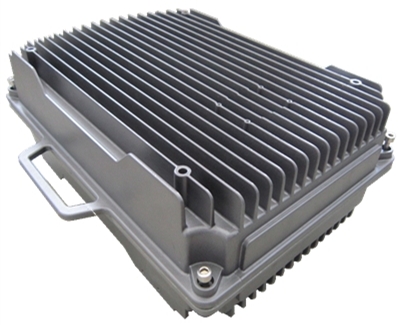

UMTS2100-60M-20W Direct Coupling FOR

UMTS2100-60M-20W Direct Coupling FOR

Feature:

·        Compact design andeasy installation

·        EMC/EMI compliant

·        High-power, greatstability

·        With ALCtechnique, the product featured as continuous adjustable output power andauto-steady amplitude control

·        60dB gainadjustable range

·        Great out-of-bandrejection

            Remote with Wireless (GSM Modem)



Main Specification:

Items

Specifications

Uplink

Downlink

Frequency Range (MHz)

UMTS2100 Band

1920 ~ 1980

2110 ~ 2180

Max. Output Power (dBm) (Max. Gain, Center Frequency )

-10±2

43±2

Max. Gain (dB) ( Center Frequency ) @Optical Loss=0

60±3

60±3

ATT Adjustable Range (dB)

0 ~ 30

0 ~ 30

ATT Adjustable Step (dB)

1

1

ATT Adjustable Error (dB)

≤ |±1.5|

≤ |±1.5|

ALC Range (dB)

0 ~ 20

0 ~ 20

ALC Accuracy (dB)

≤ |±2.0|

≤ |±2.0|

Frequency Error (ppm)

≤± 0.05

≤± 0.05

Ripple In Band (dB)at 25℃

UMTS2100 Band

≤ 8.0

≤ 8.0

UMTS2100

PAR=7

EVM (%)

≤12.5

≤12.5

PCDE (dB)

≤-35

≤-35

Spectrum Emission Mask(dBm)

2.515MHz≤f_offset<2.715MHz

≤-22dBm/30KHz

≤-14dBm/30KHz

2.715MHz≤f_offset<3.515MHz

≤-22~-34dBm/30KHz

≤-14~-26dBm/3KHz

3.515MHz≤f_offset<4.0MHz

≤-34dBm/30KHz

≤-26dBm/3KHz

4.0MHz≤f_offset<8.0MHz

≤-21dBm/1MHz

≤-13dBm/30KHz

8.0MHz≤f_offset<f_offsetmax

≤-25dBm/1MHz

≤-13dBm/30KHz

Spurious Emission (dBm)at out of band offset ±10MHz

9kHz~150kHz

≤ -36/1KHz

≤ -36/1KHz

150kHz~30MHz

≤ -36/10KHz

≤ -36/10KHz

30MHz~1GHz

≤ -10@100KHz

≤ -10@100KHz

1GHz~12.75GHz

≤ -5@1MHz

≤ -5@1MHz

Time Delay (us)

≤ 5

≤ 5

VSWR(Power up, Min Gain, Pin=-30dBm)

UMTS2100 Band

≤ 1.8

≤ 1.8

Noise Figure (dB) (Max. Gain)

≤ 7.0

/

Optical Specifications

Optical Connector

MU

FC/PC*12;

RU

FC/PC*1;

Optical Wavelength (nm)

MU

TX:1550 / RX:1310; Single Mode;

RU

TX:1310 / RX:1550; Single Mode;

Optical Output Power (dBm)

MU

-2±3

RU

4.5±3

Fiber optic path attenuation range(dB)

0~7

Radio Connector

MU

N(f)*1;

RU

N(f)*1;

Impedance (Ω)

50

Power Supply

MU

DC-48V or AC220V

RU

AC220V

Power Consumption (W)

MU

≤60

RU

≤250

Dimension (mm)

MU

482*300*44

RU

450*315*181



Environmental Class

MU

IP20(Indoor)

RU

IP55(Outdoor)

Operating Temperature (℃)

MU

-5 ~ +45

RU

-25 ~ +55

Humidity (%)

MU

0~80

RU

0~95

Control Function

MU

Local with RS-232(DB9) and RJ45;

Remote with Wireless (GSM Modem);

RU

Local with RS-232(DB9) and RJ45;
