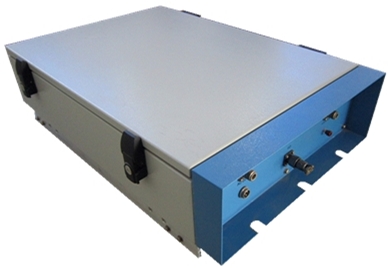

Items

Specifications

Forward

Reverse

Frequency Range (MHz)

869 ~ 894

824 ~ 849

Operating Bandwidth (MHz)

25

25

Max. Output Power (dBm) (IS-95) (Optic Loss @ 0dB or 7dB)

30/33/37/40/43/45/46±2

0±2

Max. Gain (dB) (Optic Loss @ 0dB or 7dB)

60±3

60±3

ALC Range (dB) (Optic Loss @ 0dB or 7dB)

0 ~ 20

0 ~ 20

ALC Accuracy (dB) (Optic Loss @ 0dB or 7dB)

≤ |±2.0|

≤ |±2.0|

Noise Figure (dB) (Optic Loss @ 0dB, Max. Gain)

/

≤ 5.0

Total Processing Delay (us) (Optic Loss @ 0dB, Max. Gain)

≤ 5.0

Waveform Quality (Optic Loss @ 0dB, Max. Gain)

> 0.95

> 0.96

Ripple In Band (dB) (Optic Loss @ 0dB, Max. Gain) at 25℃

≤ 4.0

≤ 4.0

ATT Adjustable Range (dB) (Optic Loss @ 0dB)

0 ~ 30

0 ~ 30

ATT Adjustable Step (dB) (Optic Loss @ 0dB)

1

1

ATT Adjustable Error (dB) (Optic Loss @ 0dB)

±1.0 @ 1 ~ 10dB

±1.0 @ 10 ~ 20dB

±1.5 @ 20 ~ 30dB

3rd IMD (dBc) (Optic Loss @ 0dB, Max. Gain)

≤ -45/30KHz (In-Band)

ACPR (dBc) (IS-95)

(Optic Loss @ 0dB, Max. Gain)

△f ≥ 750KHz/30KHz

≤ -45

≤ -42

△f ≥ 1.98MHz/30KHz

≤ -60

≤ -54

In Band Emission (dBm) (Optic Loss @ 0dB, Max. Gain)

≤ -15 (RBW: 30KHz)

Out of Band Emission @ offset ±2.5MHz

(Optic Loss @ 0dB, Max. Gain)

9KHz-150KHz/1kHz

≤ -36

150KHz-30MHz/10kHz

≤ -36

30MHz-1GHz/100kHz

≤ -36

1GHz-12.75GHz/1MHz

≤ -30

930MHz-960MHz/100kHz(Peak

≤ -47

1.8GHz-1.92GHz/100kHz(Peak)

≤ -47

3.4GHz-3.53GHz/100kHz(Peak)

≤ -47

VSWR (Power on, Min Gain, Pin=-30dBm) (Optic Loss @ 0dB)

≤ 1.5

Optic Wavelength (nm) (Nominal Power)

1550±20

1310±20

Optic TX Power (dBm) (Nominal Optic Wavelength)

4.5±2

4.5±2

Impedance (Ω)

50

Radio Connector

N(f)

Optic Connector

FC/PC

Power Supply

AC220V or DC -48V

Dimension (mm)

Master Unit

430*230*44

30/33/37dBm Remote Unit

400*270*155

40dBm Remote Unit

510*350*167

43dBm Remote Unit

510*350*190

45/46dBm Remote Unit

640*425*190

Weight (Kg)

Master Unit

≤ 4

30/33/37dBm Remote Unit

≤ 12

40dBm Remote Unit

≤ 17

43dBm Remote Unit

≤ 21

45/46dBm Remote Unit

≤ 28

Enclosure Protection Degree

IP65 (outdoor)

Operating Temperature (℃)

Master Unit

-5 ~ +55

Remote Unit

-20 ~ +55

Humidity (%)

Master Unit

85

Remote Unit

95

Control Function

Local with DB-9K (RS-232)

Remote with wireless modem
