2G Indoor Coverage Solutions for Pico Digital Repeater
2G Indoor Coverage Solutions for Pico Digital Repeater

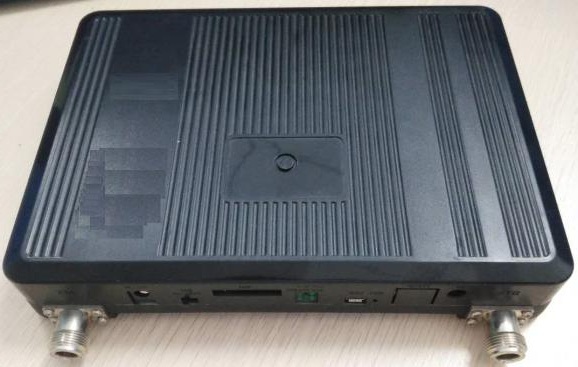

Maiwei® Digital Pico Repeater provides the most cost-effective solution to improve user experience of high quality mobile services in indoor environment as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so on. Equipping innovative plug-and-play enabling technologies, general users are able to easily install by themselves without any professional skill. Software Programmable Channel Bandwidth feature facilitates the scalable operating bandwidth for the operators.
Significant Features
ØCombined by GSM
Ø17dBm of Maximum Output Power
Ø70dB of Maximum Gain
ØCustomized Band, Maximum 6 sub bands per technology
Ø automatic detection of isolation, and can automatically eliminate
self – excitation, The elimination scope is greater than 30dB.
ØLight Weight and Small Dimension
ØLow Power Consumption without Any Cooling Fan Inside
Ø Optional built-in WIFI and mobile phone APP monitoring
ØMS Optional Customized built-in antenna
ØOptional Remote SMS monitoring
ØCoverage of A 600m2 Apartment or A 1500m2 Basement
GSM Digital Variable PICO Repeater Specifications
MODEL | DMN-G-VF2-70-17N36A | ||||
Items | Specifications | ||||
Downlink | Uplink | ||||
Frequency Range (MHz) | 935– 960 | 890 – 915 | |||
Operating Bandwidth (MHz) Band Adjustable | 0.2-10 | ||||
Sub-band number | 3 | ||||
Max. Output Power (dBm) | 17±2 | 17±2 | |||
Max. Gain (dB) | 70±3 | 70±3 | |||
ATT Adjustable Range/ Step (dB) | 0 ~ 30/1 | ||||
Ripple In Band (dB)at 25℃ | ≤±3.0@EBW | ||||
ALC Range (dB) | 0 ~ 20 | ||||
ALC Accuracy (dB) | ≤ |±2.0| | ||||
AGC Range (dB) | ≤30 | ||||
Spectrums Emission Mask (dBc) (Max Gain) | 0.05MHz£f_offset<5.05MHz | -7dBm/100kHz | |||
5.05 MHz£f_offset<10.05MHz | -14dBm/100kHz | ||||
10.5MHz£f_offset<f_offsetmax | -15dBm/1MHz | ||||
Out of Band Emission @offset ±2.5MHz | 9KHz~1GHz | ≤ -36 @ 100KHz | |||
1GHz~12.75GHz | ≤ -30 @ 1MHz | ||||
Noise Figure (dB) (Max. Gain) | ≤6.0 | ||||
Total Processing Delay (us) | ≤5.0 | ||||
Out of Band Gain at 25℃(dB) | 0.2MHz £ f_offset_CW <1.0MHz | ≤ 60 | |||
1.0MHz £ f_offset_CW< 5.0MHz | ≤ 45 | ||||
5.0MHz £ f_offset_CW<10.0MHz | ≤ 45 | ||||
10.0 MHz £ f_offset_CW | ≤ 35 | ||||
Input VSWR (Power up, Min Gain, Pin=-30dBm) | ≤2.0 | ||||
Frequency Error (ppm) | ≤0.05 | ||||
EVM (Error vector margin)(%)RMS | ≤8.0 | ||||
Impedance (Ω) | 50 | ||||
Power Supply | AC220V, 45-55Hz | ||||
Radio Connector | BTS | N(f) | |||
MS | N(f)(Note2) | ||||
Housing class | IP30 | ||||
Weight (Kg) | ≤3 | ||||
Dimension (mm) | 223*160.6*40 | ||||
Operating Temperature (℃) | 0 ~ +45 | ||||
Power Consumption(W) | ≤40 | ||||
Humidity (%) | ≤85 | ||||
Control Function | Local control | Micro-USB | |||
Status monitoring (Alarm & signal level) | Power supply, input/output power (UL/DL), isolation, temperature, Power Indicator ,Alarm Indicator | ||||
Note1: According to the production and the actual needs, the shape structure may change, in order to final production.
